The Cosy range of gateway routers offers the possibility to visualize and troubleshoot control systems (PLCs, HMIs, cameras...)**, which considerably reduces support costs and improves the availability of equipment.

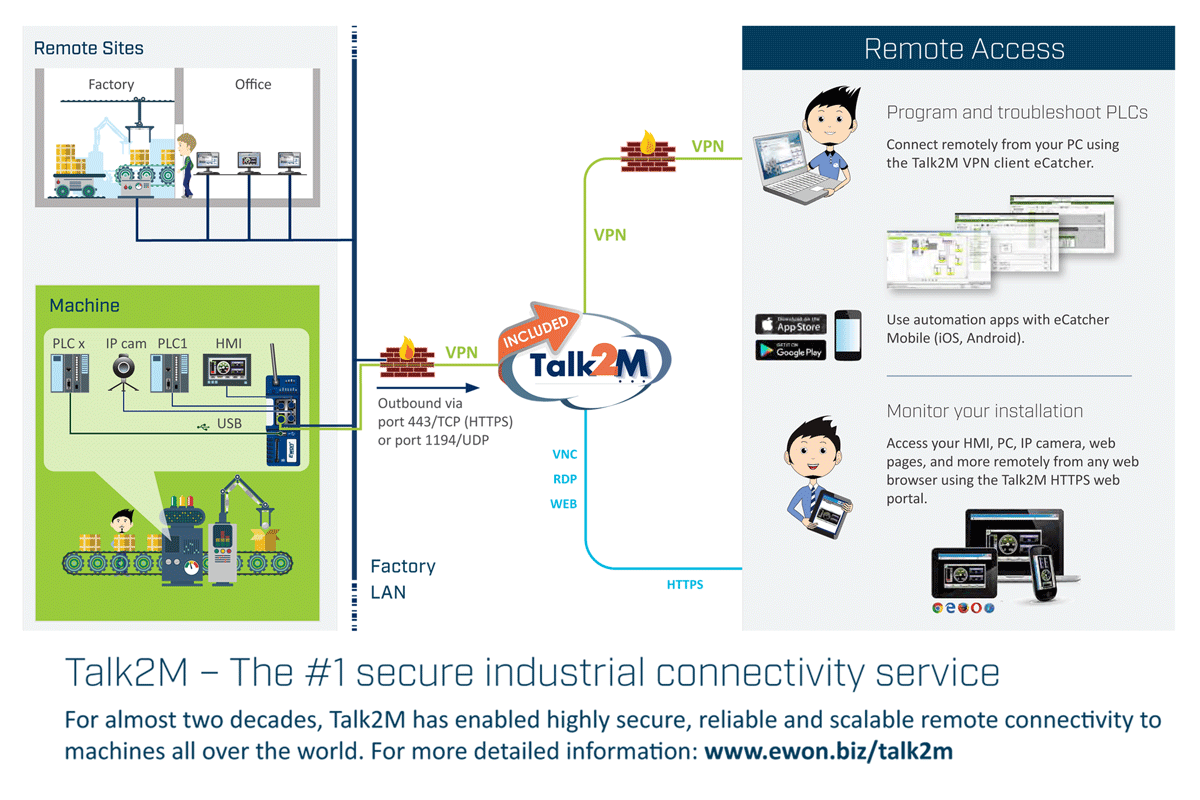

Access and administration of Cosy routers is done from a Cloud VPN service - TalK2M - offered free with the purchase of the routers. (see Talk2M)

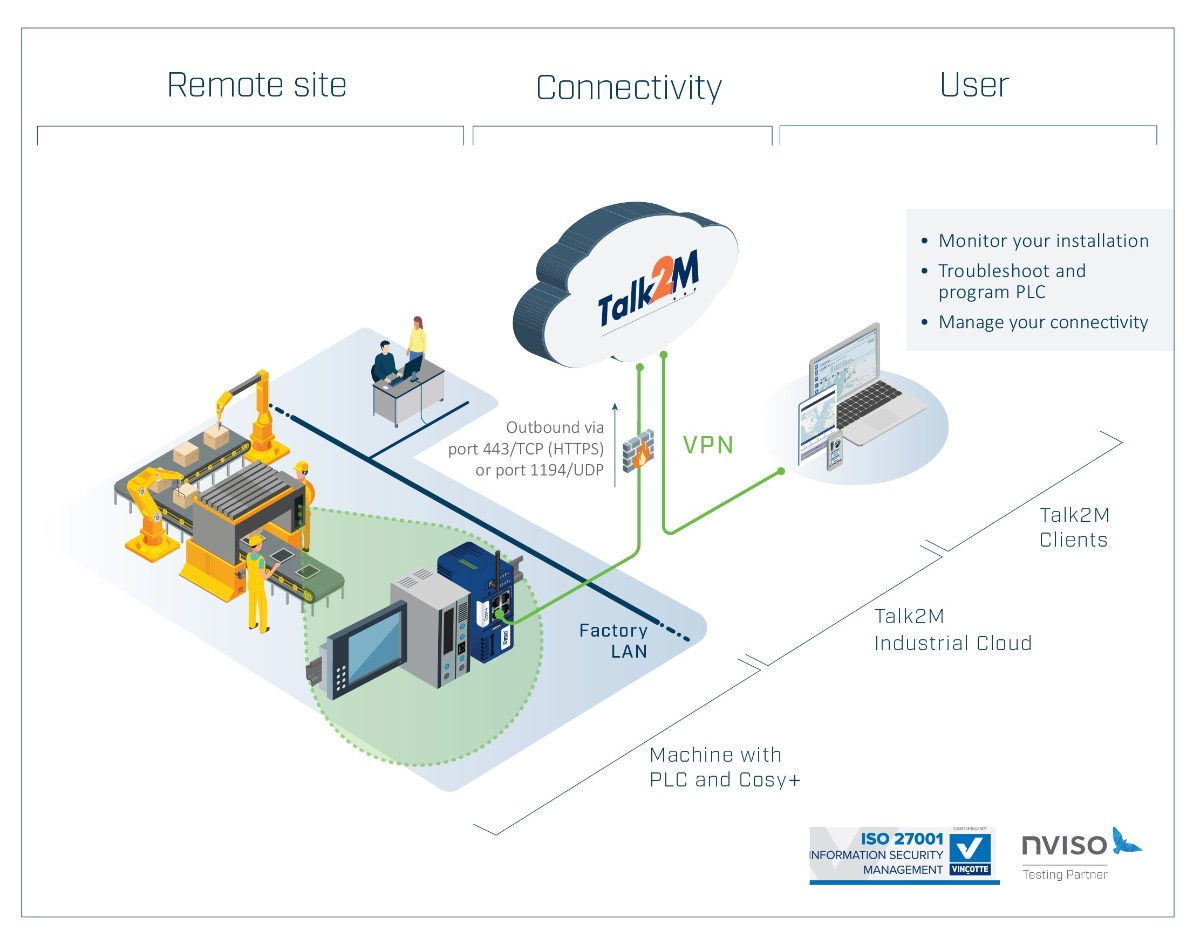

The latest addition to the range, the Cosy+ provides a major innovation by integrating security into the very heart of the electronic components ('Hardware Root of Trust'), further enhancing the possibilities of remote access to the most critical sites.
Cosy routers provide several advantages for flexible and secure industrial remote maintenance:
- Choice of connectivity mode (wired Ethernet, WiFi, Cellular)
- LAN segregation to limit remote users' access to part of the equipment,
- Local authorization for remote connectivity by means of an external key switch
- Digital output to signal an active remote connection to field operators.
Applications
All areas regarding remote maintenance of machine manufacturers, OEMs, integrators, service companies, etc. for:
- Monitoring the operation of equipment remotely
- Assist your customers in the use of your systems
- Diagnose malfunctions
- Access HMIs to perform actions on equipment
- Correct or modify the programs of your PLCs
Main benefits
- Savings on support costs, better customer service, facilitates international expansion
- Very simple to implement, no IT skills required
- Quick installation, no need to stop PLCs or supervised machines
- Flexible communications (Ethernet, Serial, WiFi, Cellular) and redundancy possible
- Free Talk2M access and administration VPN server for an unlimited number of devices and users (see Talk2M link)
- Security fully supported and widely accepted by the most demanding IT departments (see Remote Access FAQ)
- Remote access can be controlled (enabled / disabled) by the end user using an external key switch
- Configurable SMS and e-mail notification for proactive maintenance
- Possibility to connect several pieces of equipment on the same Cosy unit
- Proven product used at more than 200,000 sites worldwide
Specifications
- Mounting on DIN rail, dimensions 108 x 99 x 42 mm (H x D x W)
- Power supply 12-24 VDC +/-20%
- Operating temperatures: -25°C to +70°C (Storage: -40°C to +70°C)
- 2 digital inputs, 1 digital output
- Ethernet and USB communication ports, SD card reader
- Links to the Internet network by wired Ethernet, WiFi or Cellular
- Advanced routing functions (IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server)
- Secure Internet access (OpenVPN, outbound communications via HTTPS 443 or UDP 1194 port, SSL/TLS encryption, 2-factor authentication, etc.)
- Talk2M server certified ISECOM STAR and ISO 27001 (see Security sheet)
- Programming by Wizards via embedded Web interface
- Can be used with the vast majority of industrial control equipment (Rockwell Automation, Siemens, Schneider, Omron...)
- Hardware Root of Trust (Cosy+)
