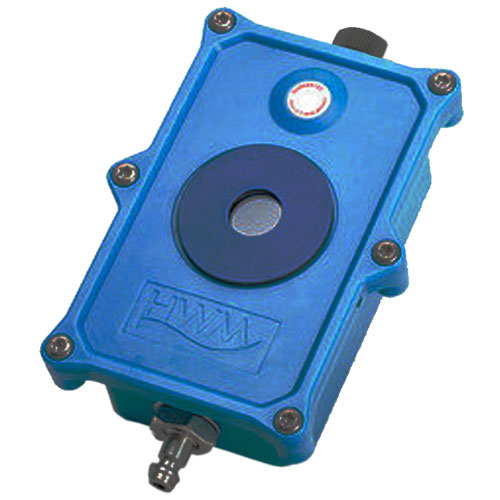

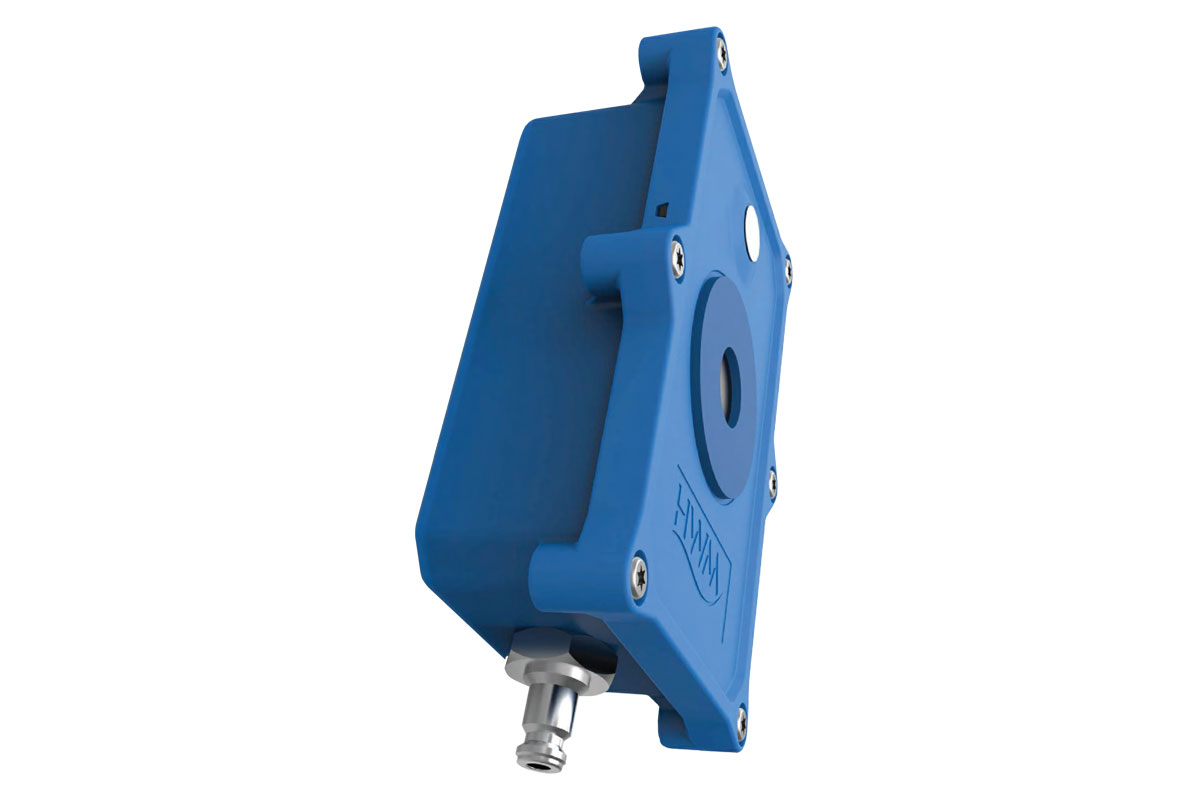

The Lolog 450 is a compact and economical data logger, available in versions with one or two measurement channels, digital or analog.
Fully waterproof, submersible and battery-powered, it is particularly designed for portable use for various instrumentation needs: level, pressure, flow, events, counting...
Applications
Similarly to the model with Lolog Vista screen, the Lolog 450 recorder is often used in temporary measurement campaigns for technical studies or performance verifications, when a solution with telemetry is not required or possible.
It can also be considered for permanent installations thanks to its very high battery autonomy (several years) and its extended memory capacity (up to 1 million data readings), with periodic reading of the recorded time-stamped data.
Its portability, watertightness and flexibility for the types of signals connected make it ideal for many applications, including:
- Water pressure monitoring on network points, fire hydrants, etc.
- Verification of the operation of pressure control valves
- Monitoring of reserve levels, water tables, rivers, sewerage networks etc.
- Diagnosis of meters or flowmeters, mono and bidirectional counting
- Quantification of requests, accounting of volumes and consumptions
- Network sectorization studies and leakage flow measurements
- Event detection and recording (overflows, equipment start-ups, etc.)
- Precipitation measurement with rain gauge (rain, sleet, hail)
- Calibration of hydraulic network models (availability of versions with 0.1% measurement accuracy)
- Various combinations (e.g., Pressure+Flow, Level+Overflow)
- Recording of various measurements from sensors and instruments with 4-20 mA output
A special version of the product is available for use with Hydreka's WinFluid software.
Main benefits
- Compact and easy to implement
- Long battery life (about 5 years)
- Fully sealed to IP68 (submersible) and corrosion protection
- Flexibility to adapt to a wide variety of applications
- Availability of models with integrated pressure sensor
- Flexibility of recording frequencies and modes
- Programming and local data readout via magnetic socket and infrared reader (no socket connection required)
Specifications
- Dimensions (H x W x D) : 125.6 x 91.8 x 44 mm (4.9 x 3.56 x 1.7 '')
- Weight: 210 g (may vary depending on model)
- Robust Plastic Housing
- Operating Temperatures: -20°C to +60°C (-5 to +140°F)
- Powered by user-replaceable internal Lithium battery. Average autonomy of 5 years
- IP68 waterproof (submersible) and corrosion protection
- Logging capacity: 64,000 time-stamped data readings (can be increased to 1 million data readings)
- Configurable sampling rate, in steps of 1 second, 1 minute or 1 hour (1 to 60 sec, 1 to 60 min, 1 to 24 h)
- Other data logger modes available depending on the application (events, alarms, start/stop)
- Inputs available according to models (1 or 2 of each type):
— digital ON/OFF inputs (level floats, rain gauges ...)
— mono or bi-directional count inputs (up to 64 Hz)
— Analog inputs 4-20mA (1 channel only)
— integrated pressure sensors
— external pressure or level sensors - Analog measurement accuracy: 0.2% full scale (0.1% optional)
- Programming and local data collection via USB cable and Infra-red plug (IDT software included)
Related products
- Various sensors: Level sensors, Pressure sensors, Sensors etc.
- In particular, see our very low consumption piezometric sensors on this site (PDCR models).
- Stand-alone flowmeters that can be associated with Lolog (in particular, see the HydrINS2 and Torpee-Mag insertion flowmeters).
- Pluviometers, amperometric clamps, etc.
- USB / Infrared communication cable
- Associated software:
— IDT of HWM (standard Lolog version)
— WinFluid by Hydreka (special Lolog version) - Various accessories :
— Mounting brackets
— Cables with waterproof connectors for instrument connection
— Flexible Rilsan tubes with Quick Connect plugs for connection to internal pressure sensors
— Special adapters with threaded connections, Quick Connect sockets, etc.
