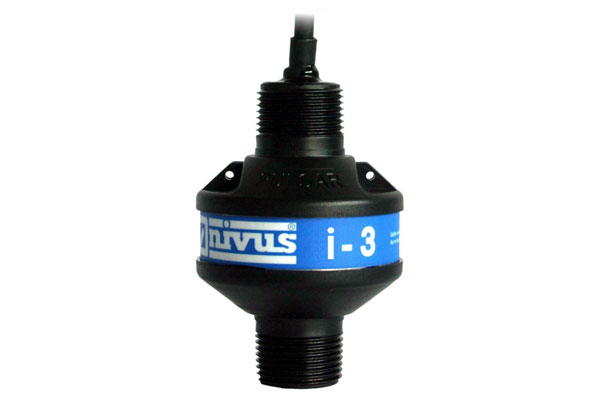

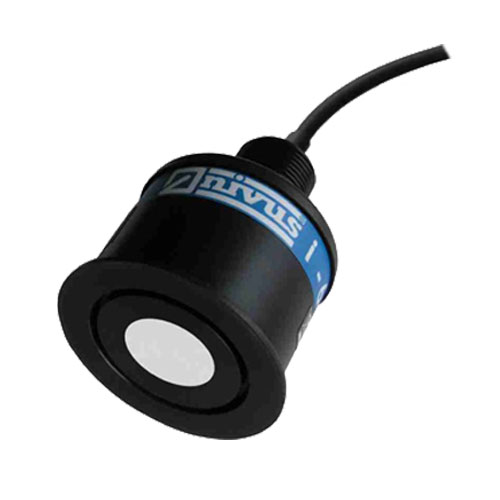

i-Series sensors are high-precision ultrasonic sensors for measuring distance, level, empty space, and volume, for liquid media or bulk materials.
They are particularly suited to harsh environmental conditions. Their non-contact measurement technology prevents fouling and wear. Defined, pre-configured measurement ranges avoid complex programming.

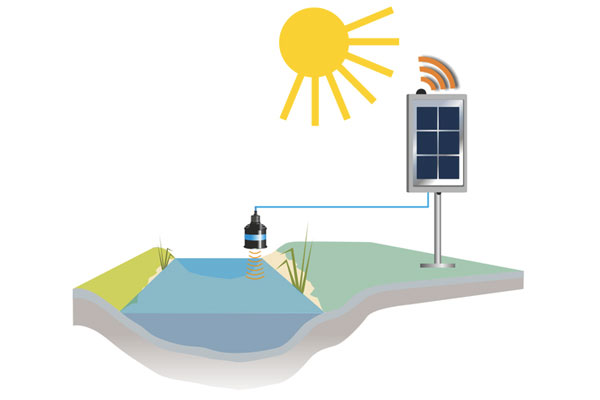

i-Series Sensors can be connected to any PLC, data logger or acquisition system with an active mA input or HART communication protocol.
More specifically, they are commonly used in NivuFlow flowmeters from Nivus.

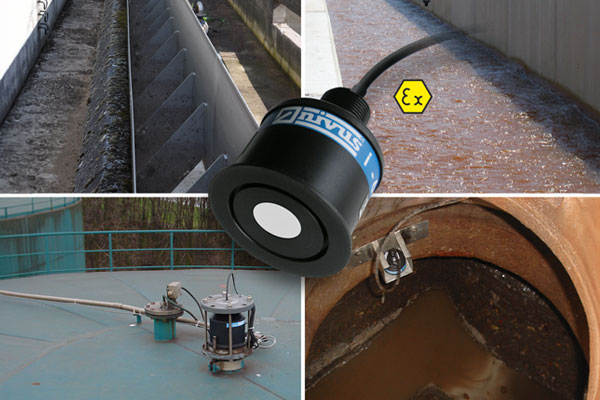

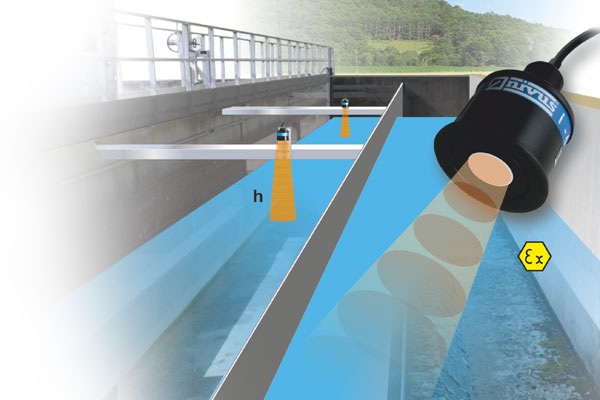

Applications
- Wastewater: pumping stations, overflow structures, clarification basins, screening facilities, etc.
- Drinking water: tank level measurement, water treatment

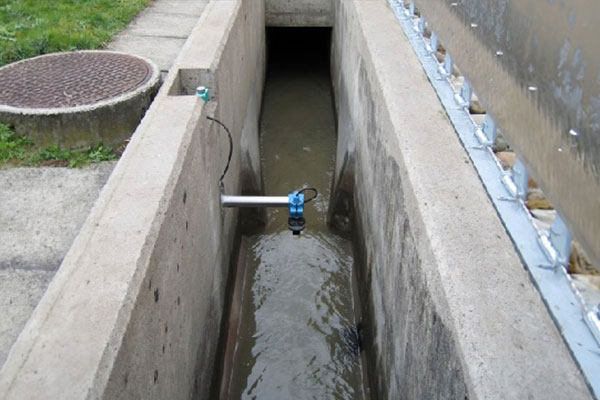

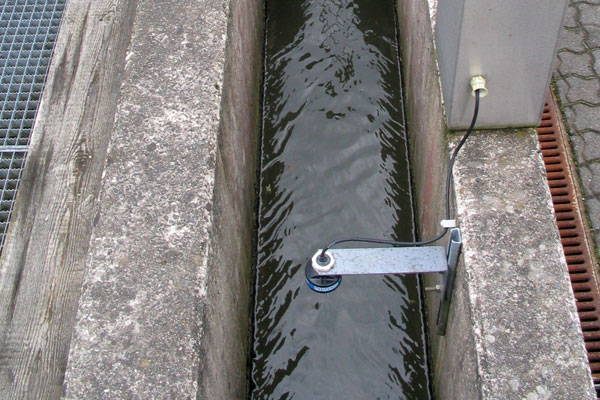

- Flowmetering using flumes, weirs or channels
- Tank volume measurement, container monitoring
- Irrigation systems, seawater desalination
- Flood protection: retention reservoirs, surface water
- Power generation: cooling systems, hydroelectric power plants
Main benefits
- High accuracy
- Settings and pre-programming for 3, 6, 10 and 15 m ranges
- Low power consumption (short measurement time, fast start-up time in standby mode); ideal for battery-powered systems
- Resistant to moisture, corrosion, and extreme temperature variations
- Degree of protection IP68
- Can be connected directly to a PLC
- Time- and space-saving, integrated transmitter
- Digital echo processing with automatic false echo suppression (DATEM process)
- Approval for potentially explosive areas Class I/Division 1/Zone 1 (Zone 0 optional)
Specifications
MEASUREMENT
- Ranges:

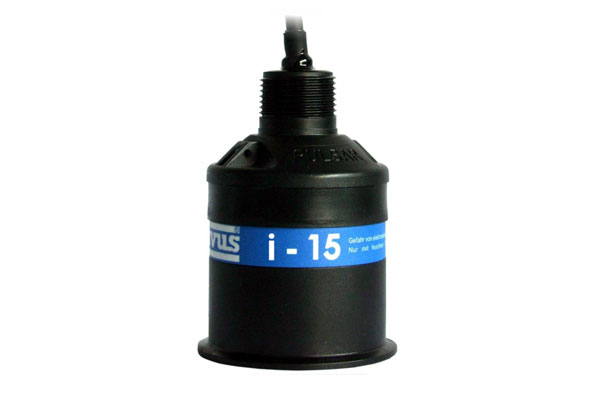

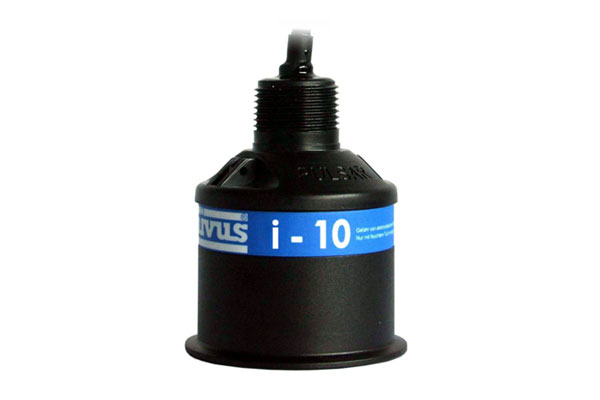

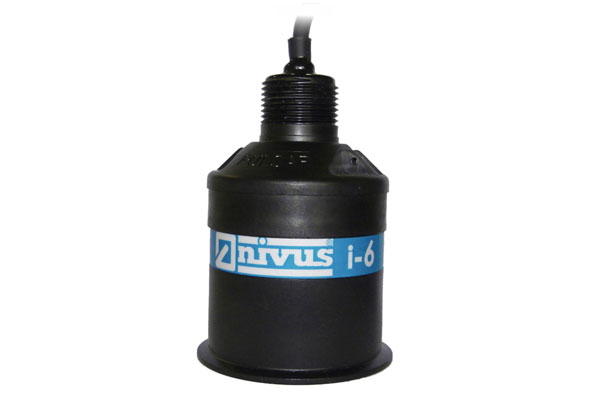

— 0.125m-3m (i-3 model)
— 0.3m-6m (i-6 model)
— 0.3m-10m (i-10 model)
— 0.5m-15m (i-15 model) - Accuracy:
— 2mm (i-3 model)
— 4mm (i-6 model)
— 3mm (< 6 m) / 6 mm (> 6 m) (i-10 model)
— 5mm (< 10 m) / 10 mm (> 10 m) (i-15 model) - Resolution:
— 1mm (i-3 model)
— 2mm (i-6 model)
— 3mm (i-10 model)
— 5mm (i-15 model) - Angle of emission: <10°.
- Transmission frequency
— 125kHz (i-3 model)
— 75kHz (i-6 model)
— 50kHz (i-10 model)
— 41kHz (i-15 model)
ENCLOSURE - ENVIRONMENT - Housing material:
— Standard: Valox 357 resin (PBT/PC)
— Optional, for aggressive media up to 70°C: PVDF (for i-6, i-10 and i-15) - Emitter face coating: PTFE foam for dusty bulk materials (for i-6, i-10 and i-15)
- Degree of protection: IP68 (5 bar)
- Operating temperature: - 40 °C to + 80 °C
- Ex approval Class I/Division 1/Zone 1 (Zone 0 optional)
POWER SUPPLY – CONSUMPTION
— Supply voltage: 10-28 V DC
— Start-up time: 4 seconds
INTEGRATED CONVERTER SIGNALS - Outputs:
— 4-20mA (3.8-22mA)
— HART® - current loop (2 wires), also for programming
OPERATION - Functions: Level, distance, vacuum, volume, linearization (16 base points)
- Echo processing: automatic, self-adaptive suppression of false echoes
- Configuration: via stand-alone HART Communicator or free Nivus PC-Suite software (parameterization, echo processing, linearization, false echo suppression)
MISCELLANEOUS - Cable lengths: 5, 10, 20, 30, 50 or 100 m; other lengths on request
- Flood protection head (optional): for all models without front thread
- Flange (optional): DN50 / DN 80 / DN100 / DN150 / DN200 (2 " / 3" / 4" / 6" / 8")
- Front thread (option):
— 1.5'' NPT/BSP (i-3 and i-6 models)
— 2'' NPT/BSP (i-10 model)
Related products
- Radar (OFR), Doppler, and cross-correlation velocity sensors, for flowmetering applications
- Transmtters-converters (OCM F, NivuLevel, NivuFlow range)
- PLCs, dataloggers, telemetry systems (see REDY, FLEXY, Multilog...)
