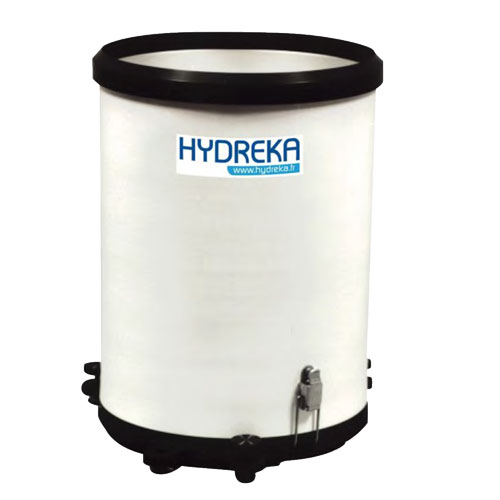

Hydreka's PL2 range of rain gauges are designed for the automatic measurement of rain, melted snow or hail.
The instrument is based on a tipping bucket technology calibrated for different quantities of precipitation; the output signal generated by the rain gauge when the full bucket tips can be connected to an acquisition system, stand-alone data logger or traditional PLC, which ensures the logging and calculation of precipitation volumes.
Robust and easy to use, the PL2 is available with 2 opening areas (200 and 400 cm2) and for 4 bucket tipping frequencies (0.1 mm, 0.2 mm, 0.254 mm and 0.5 mm).
It can be supplied with a heating option to maintain operation during winter.
Applications
- Standard meteorological monitoring, Flood prevention, Climatological studies, etc.
- Diagnosis of sewerage networks within the framework of flow measurement campaigns
- Data collection of rain and snowmelt periods for the analysis of wastewater overflow events
- Stormwater intrusion monitoring in sewer systems
- Monitoring of leachate production and groundwater contamination risks
- Follow-up studies of source water quality (evolution of turbidity...)
- Support for agricultural operations
Main benefits
- Robust design
- Flexible and modular solution
- Accuracy, sensitivity
- Coupling to a data logger makes it possible to measure the evolution of the precipitation intensity over time in addition to the simple volume measurements.

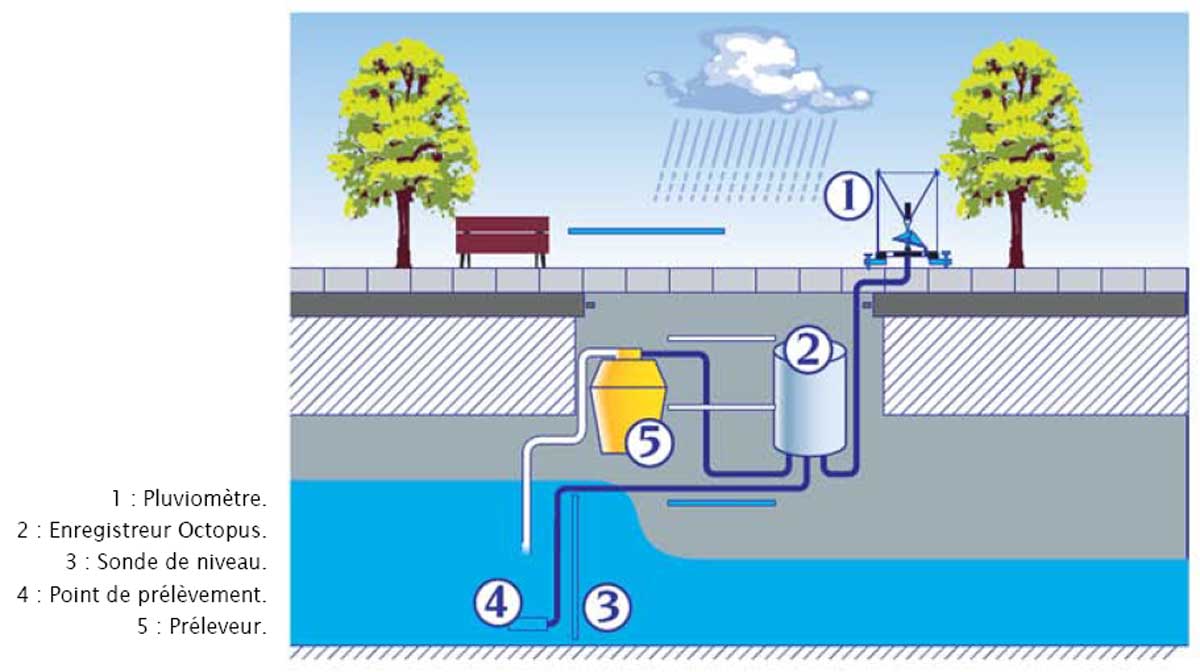

- Possibility of integration into an intelligent measurement chain combining stand-alone battery data loggers and Hydreka's management tools, for example in a sewerage network:
— Rain gauge, with volume measurement and alarm management
— Water level sensor, with flow calculation integrated in the data logger
— Sampler, controlled directly by the data logger on configurable thresholds
Specifications

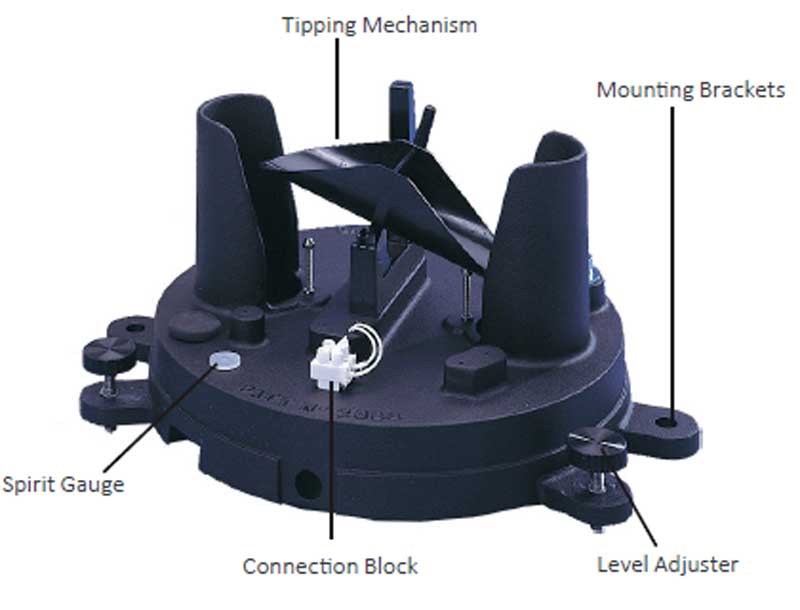

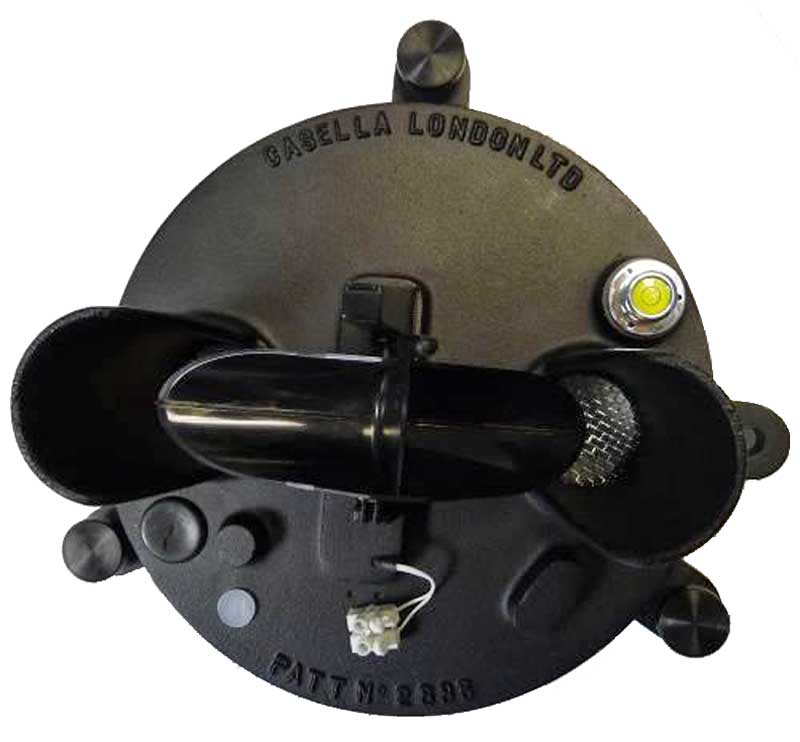

- Technology: tipping buckets (2 compartments) generating a pulse at each filling
- Dimensions (Diameter x Height): 240 mm (9.4'') x 340 mm (13.4'')
- Weight: 2.6 kg
- Materials:
— shell, funnel and rings: aluminum alloy
— joints and fittings: silicone rubber - Integrated spirit level for horizontal positioning
- Operating Temperatures:
— +1 to +85°C (standard version)
— -20°C to +85°C (version with heating) - 2 Available opening areas: 200 cm2 and 400 cm2
- 4 Counting sensitivities (bucket tipping frequencies) available:
— 0.1 mm, 0.2 mm, 0.5 mm
— special version 0.254 mm (for Sigma 950) - Accuracy: ±1% at 1 l/h. Adjustment possible by calibration screw.
- Output signal: Dry contact

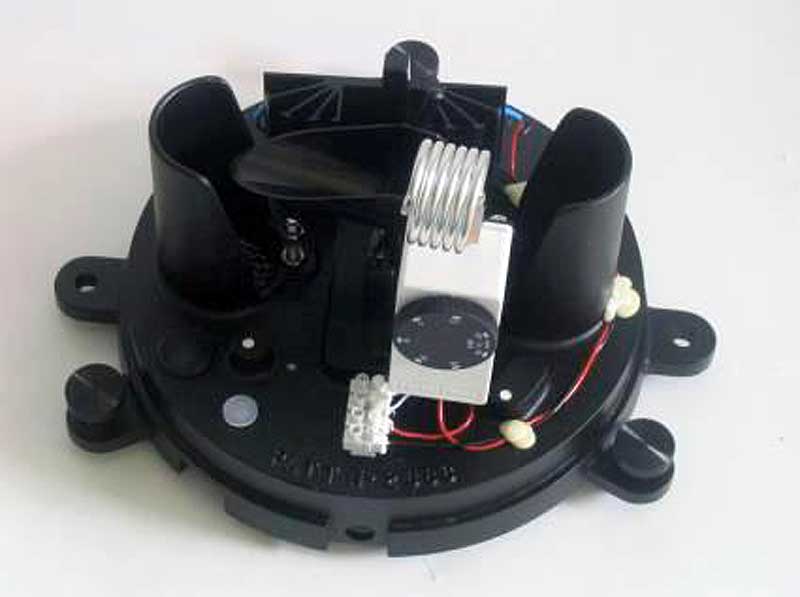

- Specifications of the version with heating:
— Integrated adjustable control thermostat (measuring range: -20°C to +40°C)
— 24 VAC power supply
— Consumption
Related products
- Accessories:
— Support with stainless steel 304 plate and post (0.65 m/25.6'')
— Anti-bird spikes - Stand-alone data loggers and PLCs (with or without telemetry)
- Cables with waterproof connectors for connection to data loggers
- Samplers
- WinFluid software
