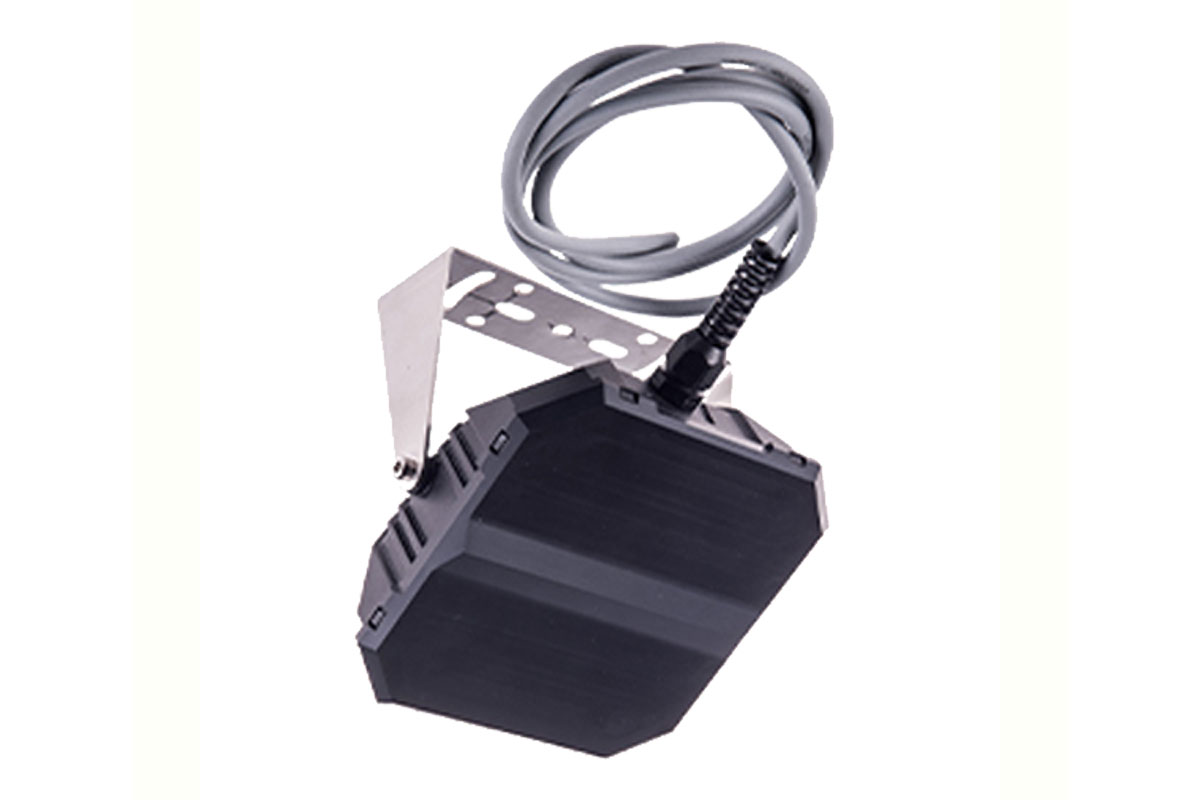

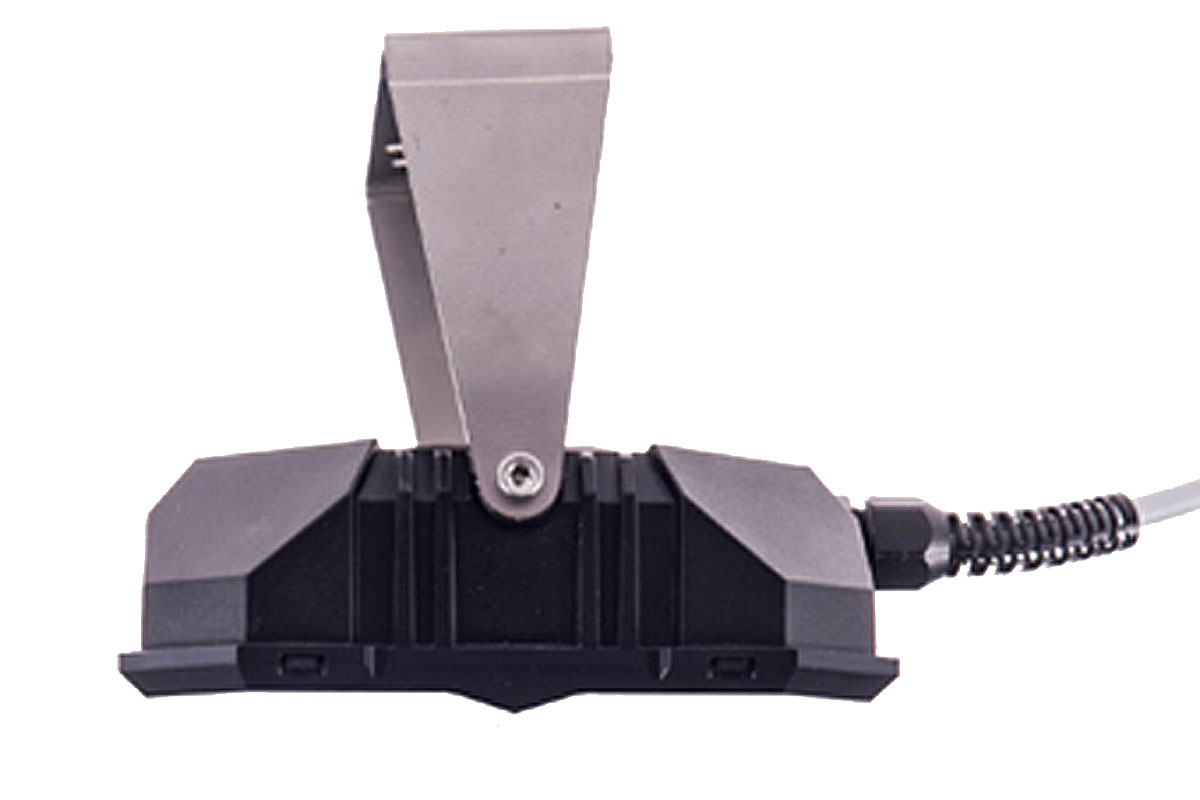

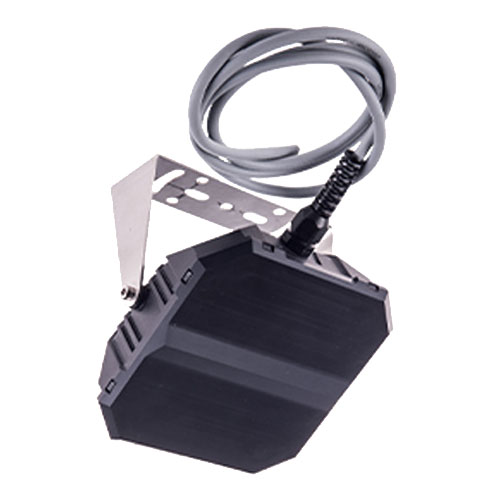

The new generation of NRV radar level sensors from Paratronic are characterized by their small emission angle and very low power consumption.
These features make it the ideal product for applications in confined or congested spaces, as well as on sites with no power supply. For example, the NRV is often used in conjunction with stand-alone battery or solar-powered acquisition systems.
The NRV is available in different measurement ranges, with 4-20mA analog or Modbus Serial digital outputs.
Applications
The NRV is commonly used to measure surface water levels in natural environments (rivers, dams, lakes...) or in sewerage networks (pumping stations, overflow structures...).
In general, it can be used for any level measurement application without immersion and without contact with liquids, particularly when there are problems of limited space or power supply.
Main benefits
- Small emission angle (+/-4° by +/- 6°). Ideal for restricted or congested spaces.
- Low power consumption and very low heating time. Ideal for sites without power supply.
- Available with 4-20 mA analog or digital Modbus outputs.
- High immunity to power surges and rapid transients
- Accuracy unaffected by the presence of moisture or condensation
- Advanced processing algorithms allowing measurements on effluents loaded with foams, greases...
- Possibility to set up measurement exclusion zones (obstacles in the measurement cone...)
Specifications
- Pulse Radar Technology (frequency 24.05 GHz to 26.5 GHz)
- Available measuring ranges: 3m, 8m or 12m
- Dead band: 30 cm
- Accuracy: between 5 mms and 20 mms, depending on the zone and range of measurement
- Resolution: 1 mm
- Operating Temperature: -20 to +60 °C
- IP68 waterproof (100 days under 1 m of water)
- Material ABS
- Dimensions (L x W x H): 121 x 121 x 43 mm
- Weight: 450 g
- Cable length: 2 m to 1 km (depending on models and conditions)
- Factory pre-set. Modifications possible with the free HMI software Sensors and cable + USB ADP box

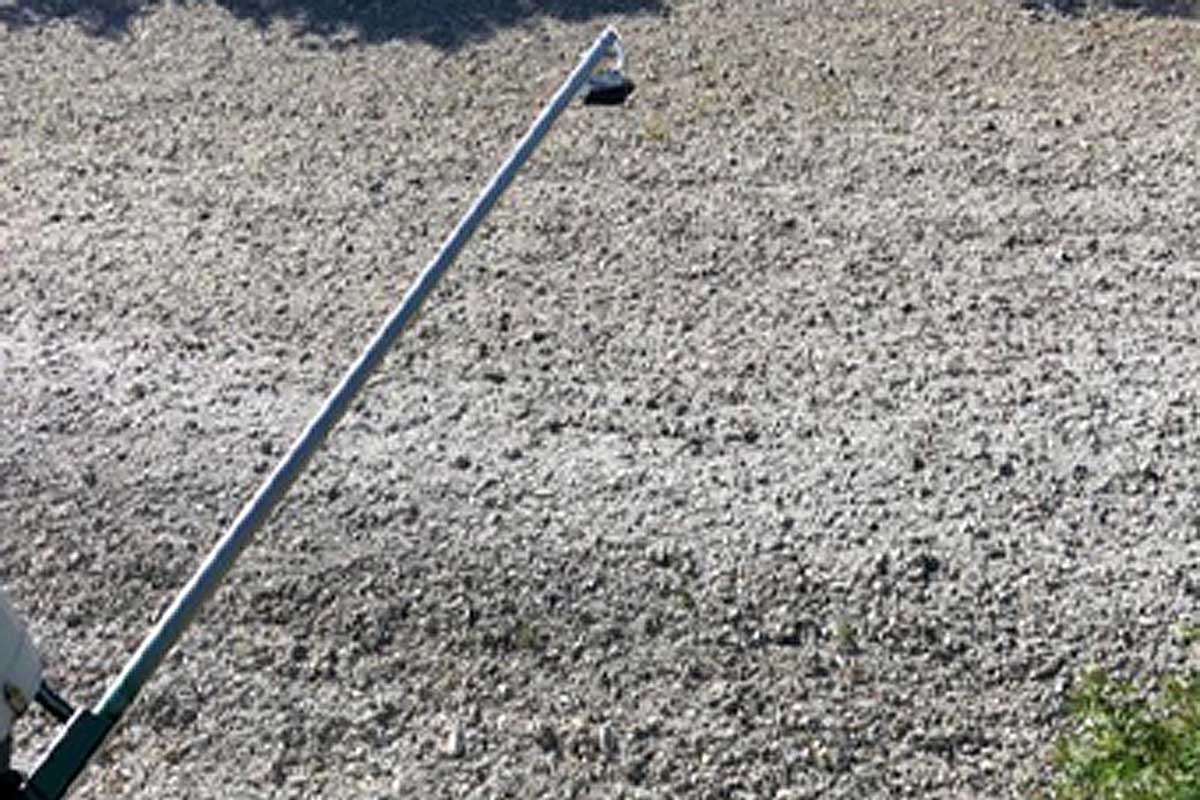

- Very simple installation on walls, beams, footbridges, bridges... (supports available)
MODELS NRV 4-20MA
- 4-20 mA output signal
- Power supply: 10 to 33 VDC
- Consumption: loop current 4-20 mA
- Min. heating time: 2 seconds (+ smoothing depth)
- Max. heat-up time: depends on sensitivity setting, fault current and smoothing depth
- Smoothing depth: can be set between 2 sec and 60 sec.
- Fault current: adjustable between 4 and 22 mA
MODELS NRV RS485
- Digital output signal, Modbus serial RS485 protocol
- Power supply: 9 to 20 VDC
- Consumption: 15 mA in operation, 100 μA in standby
- Min. heating time: 2 seconds (+ smoothing depth)
- Max. heating time: depends on the sensitivity setting and smoothing depth.
- Adjustable smoothing depth: 1, 4 or 16 sec.
Related products
- Installation accessories (hanger, deflection bracket)
- Sensor HMI software, communication cable and USB ADP box
- Data Loggers, PLCs and telemetry systems
