FloStick RC4

The Integrated Electromagnetic Velocimeter

The FloStick electromagnetic velocimeter (or current meter) is a portable and economical device for measuring and recording water flow velocities.

The FloStick combines a probe, a wading rod and a display in a single unit, making it very easy to handle and allowing for very quick measurements in the field.

Simple to use and requiring no parameterization or adjustment, the FloStick is the ideal tool to obtain precise velocity measurements in a few seconds, even for low flows or low water level.

Applications

Temporary and fast measurements of velocities and flows for many applications in fresh water, salt water, wastewater, etc.:

  • Rivers and streams
  • Irrigation canals
  • Inlet canals
  • Sewerage networks
  • All open channel gauging

Main benefits

  • The measurement is not dependent on water turbidity, temperature, conductivity (except for extreme values).
  • The measurement is unaffected by turbulence, vibrations, external noise, etc.
  • Suitable for clean and wastewater
  • Can operate with low water levels and low velocities
  • Fast and accurate measurements, without the need for special analyses and processing
  • Bidirectional measurement
  • Robustness (no moving parts, no transducers, etc.)
  • Recording of measurements
  • Easy to use, with a graphic display and navigation wheel for configuration and viewing of instant and recorded measurements

Specifications

  • Polyamide housing
  • IP66 waterproof (resistant to strong water jets); IP67 optional (withstands immersion in water)
  • Dimensions (L x W x H) :
    — case: 170x110x200 mm
    — sensor: 100x30x20 mm
    — Rod: 900 mm
  • Weight: 1.4 kg
  • 144x32 LCD graphic display with blue backlight, readable in sunlight
  • Operating Temperatures: -10°C to +50°C
  • Measuring range (bidirectional): 0 to 2 m/sec (optional 0 to 3 m/sec)
  • Accuracy: +/-2% of the measurement (option for 1% calibration)
  • Resolution: +/-0.001 m/sec.
  • Can record 2000 measurements (14000 measurements optional)
  • Powered by internal rechargeable Lithium-Ion battery (30h continuous operation)

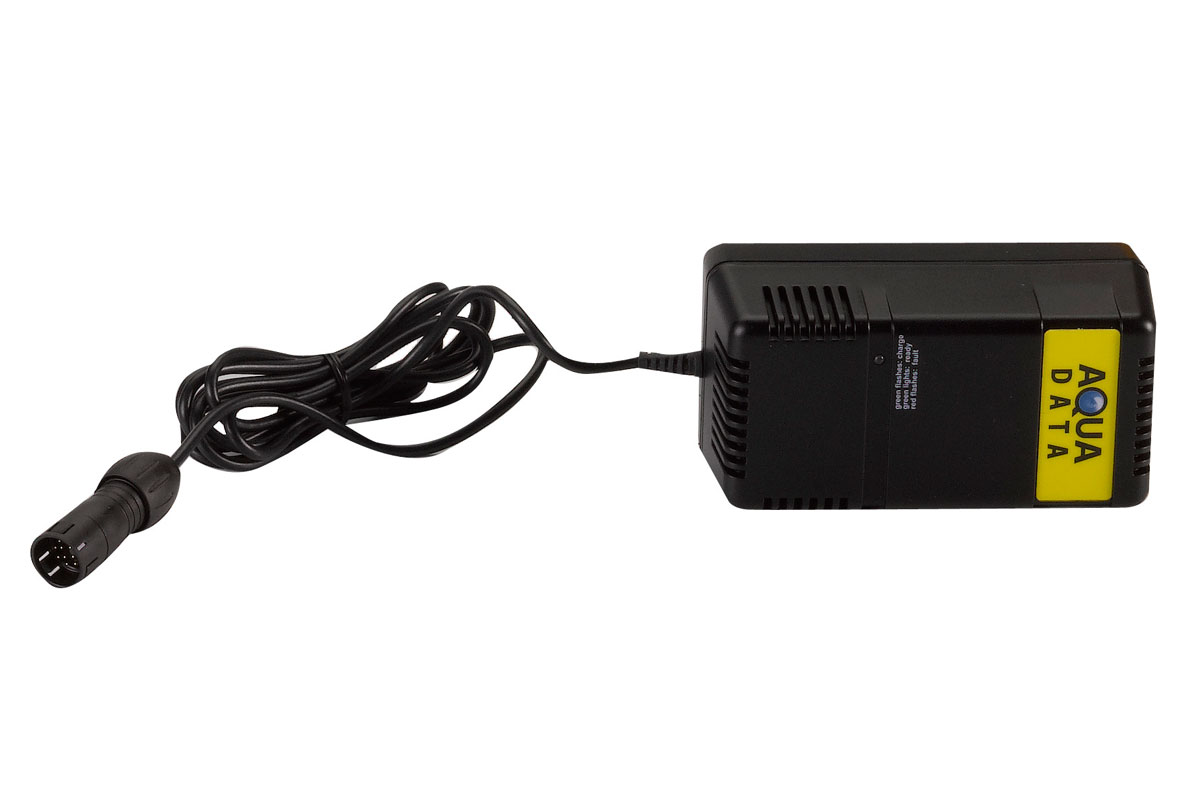

  • Carrying case and battery charger included

Related products

  • Fluvia RC3 Electromagnetic Velocimeter

Documents



Related pages

Illustrations

FloStick RC4

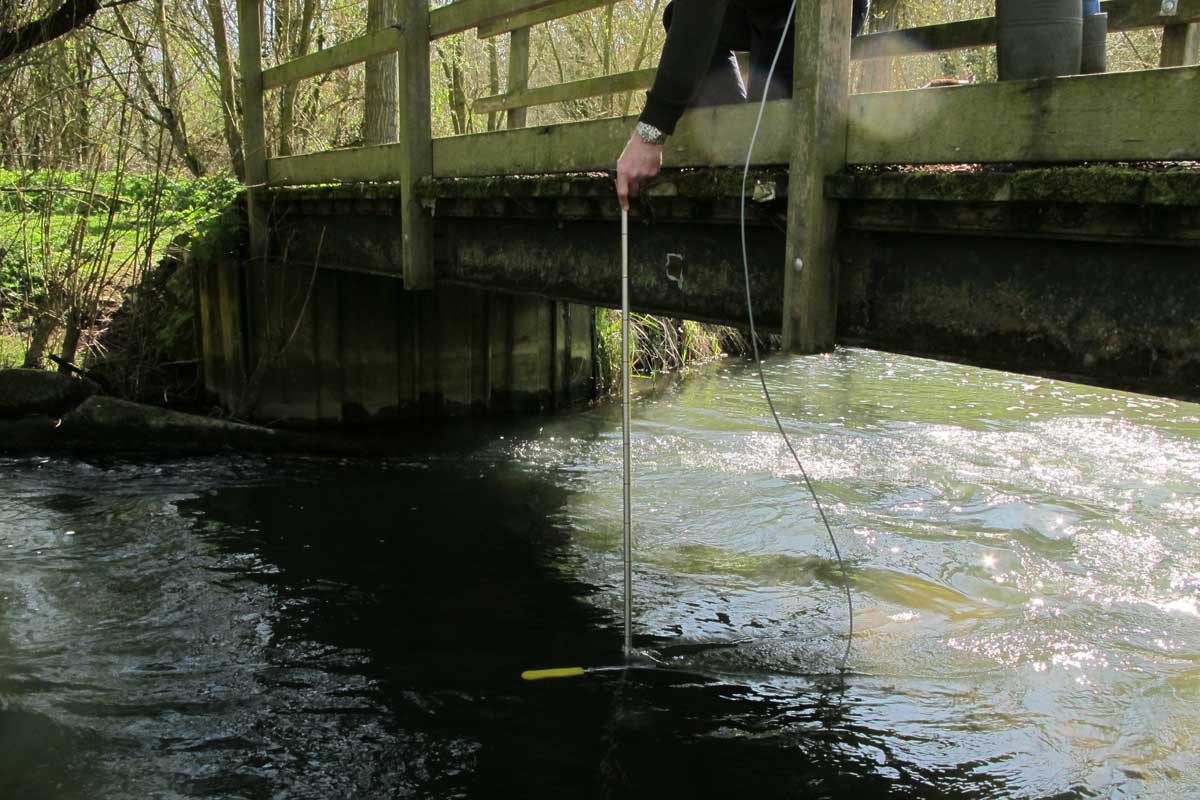

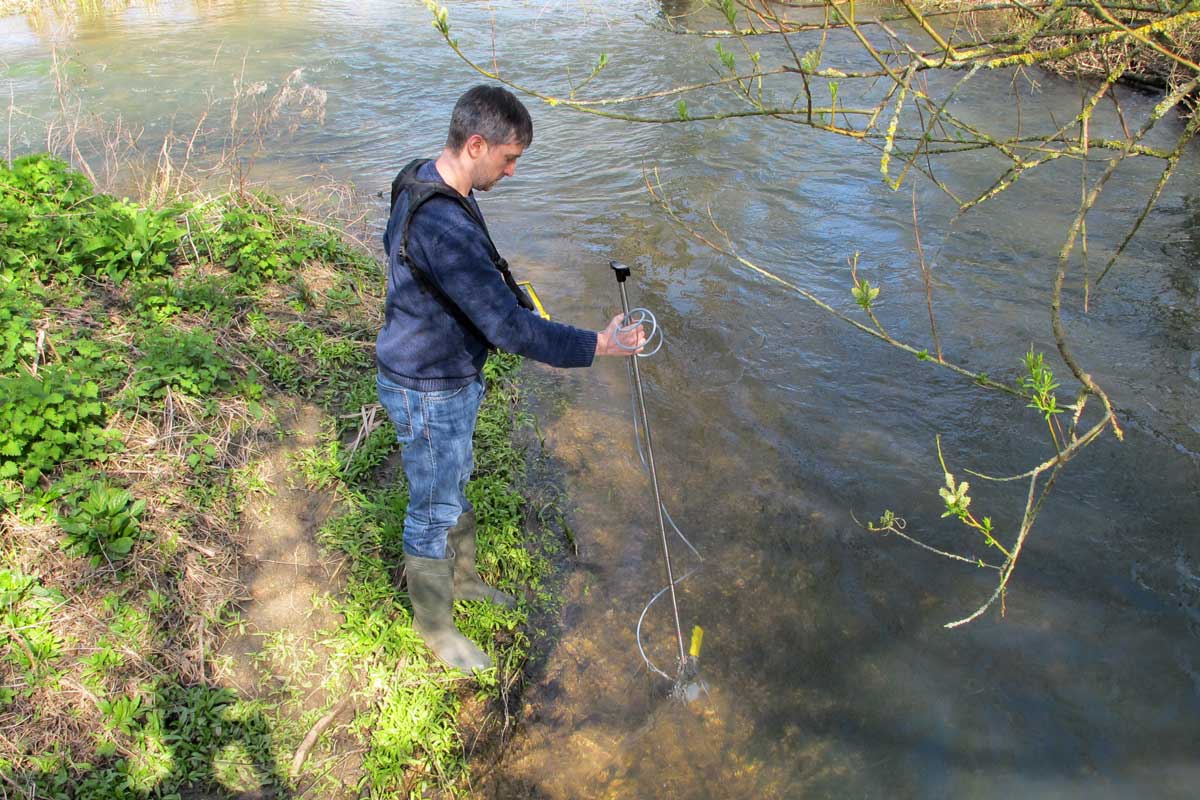

FloStick RC4, on the field
FloStick RC4, on the field
FloStick RC4, on the field
FloStick RC4, on the field
